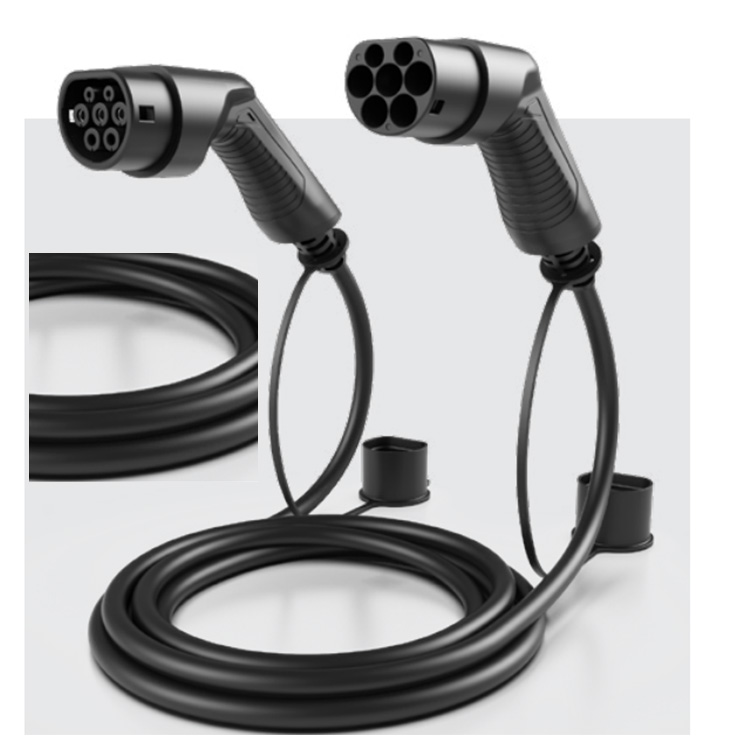

EV Charging Cable Type2 Type2 16A Three Phase with 5m Smart EV Charging Cable

EV charging cables can vary in length, with shorter cables being suitable for charging at home or at a workplace, and longer cables being suitable for charging at a public charging station. The cables may also have a built-in mechanism for managing the flow of electricity, such as a circuit breaker or fuse, to ensure safe charging.


  • The Main Material: TPU
  • Plug Color: White/Black/Other
  • Ptach Life: ≧10000
  • Rated Voltage: AC380V~450V
  • Certification: CE
  • Net/Gross Weight (Kg): 3.61kg/4.43kg
  • Contact Resistance: Less Than 0.5mΩ
  • Cable Specification: 5*2.5mm²+0.5mm²
  • Packaging: Single Color Box
  • Self-cleaning
    FunctionHardly producing electric sparks.

    TPU MaterialLong service life, Easy to bend and fold.

    Product Detail

    Pillar EV Charger

    AC EV CHARGER-7.4KW

    DC EV CHARGER

    Product Tags

    91 (1)

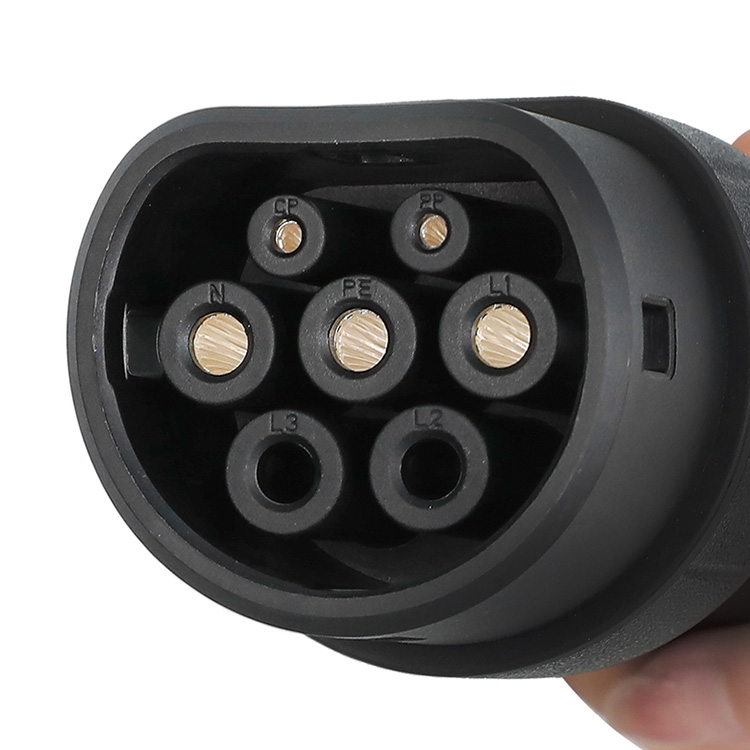

    The connector that plugs into the EV is typically located on the charging cord that comes with the vehicle. It is usually a specific type of connector that is designed to fit only the charging port on the vehicle. This connector is typically designed to be weather-resistant and durable, as it will be exposed to the elements when the vehicle is being charged.

    2 (1)

    Charge at home, at work, or anywhere with the socket. No installation is required, just an intuitive pairing process. Plug and charge, wherever you are;

    2 (2)

    Copper Alloy PinCoated with Pure SilverProtected by Thermoplastic

    2 (3)

    Type XBDC-ev32-CT-3
    MOQ(PCS) 100
    The main material TPU
    Plug color White/Black/Other
    Ptach life >=10000
    Rated Current 32A 3P
    Fire Rating UL94 V-0
    Rated Voltage AC 220V~250V
    Waterproof rating IP54
    Resistance Voltage 2000V
    Operating Temperature -30ºC~50ºC
    Insulation resistance >1000MΩ
    Cable Specification 3*6mm²+2*0.5mm²
    Contact Resistance Less than 0.5mΩ
    Certification CE
    Cable Length 5M /other
    Net/gross weight (kg) 3.61kg/4.43kg
    Packaging single color box
    Packaging dimension  mm 380*380*120
