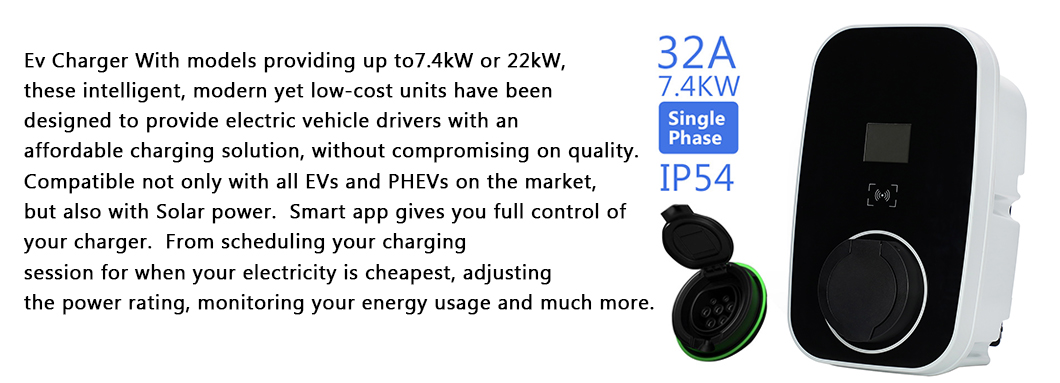

Wall Box EV Charger 7.4KW 32A EV Charger Vehicle to Home Charging 22KW Fast EV Charger

7.4KW 1phase type 2 car charger hot selling, 22KW 3 phase car charger home ev charging station with over current protection, wall box charger install charging station at home, factory supply portable charging station for car.


  • Product Dimension: 330*200*109
  • Product Material: ABS+PC
  • Indicator Light: Three colors LED
  • Rated/Maximum Current: 32A
  • Charger Connector: Socket Type2
  • Ingress Protection: IP54
  • RCD: AC30mA,DC6mA
  • Over Current Protection
    Ground Protection
    Surge Protection
    Over/Under Voltage Protection
    Over Temperature Protection

    Product Detail

    Product Tags

    Wall mounted 7.4kw ev charger charging station home ev charger 32amp 22kw ev charger type2 vehicle charger

    Specification

    Item Datasheeet 7.4KW 22KW
    Type EVC1S-32 EVC3S-32
    Input Power Supply 1P+N+PE 3P+N+PE
    Rated Vpltage AC220~240V AC400±10%
    Rated current 32A(16A ,13A,10A adjustable) 32A(16A ,13A,10A adjustable)
    Output Output Voltage AC220~240V AC400±10%
    Maximum Current 32A(16A ,13A,10A adjustable) 32A(16A ,13A,10A adjustable)
    Rated Power 7.4KW(MAX) 22KW(MAX)
    User interface Charger connecter Type 2 socket Type 2 socket
    Cable length NO NO
    Material ABS +PC ABS +PC
    COlour white + black white + black
    Three clour led
    OLED Optional Optional
    Start Mode
    Plug in and charge
    Tuya App Optional Optional
    Card start Optional Optional

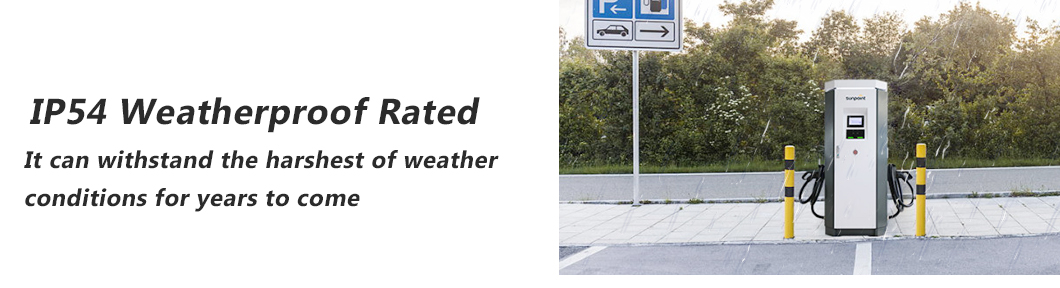

    Safety Ingress Protection IP54 IP54
    Impact Protection / /
    Over current protection
    Residual current protection(AC30mA,DC6mA)
    Ground protection
    Surge protection
    Over/Under voltage protection
    Over temperature
    Certification CE/ UKCA (Dekra) CE/ UKCA (Dekra)
    certification Standard EN IEC 61851, EN 62196 EN IEC 61851, EN 62196
    Enviroment installation Wall mounted Wall mounted
    Work Temperature ‘-25℃~50℃ ‘-25℃~50℃
    Work Humidity 3%~95% 3%~95%
    Work Altitude <2000m <2000m
    Package Procduction Dimension(H*W*D)mm 330*200*105 330*200*105
    Package Dimension(L*W*H)mm 390*260*165 390*260*165
    Net weight (kg) 1.8 2.1
    Gross weight (kg) 2.2 2.5
    External container loading capacity 4 unit in one box 4 unit in one box
    External Package dimension mm 535*405*350mm 535*405*350mm
    Container Quantity(20'/40'/40HQ) 1464/2973/3472 1464/2973/3472

    Application

    product-application-1

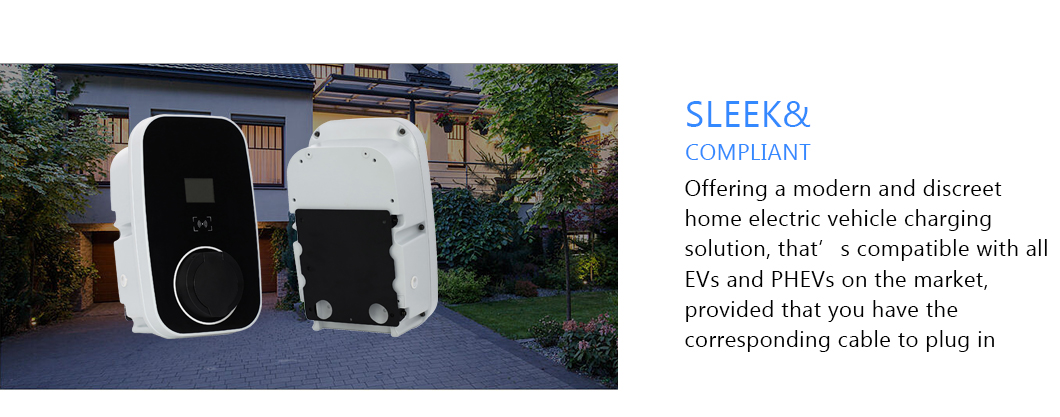

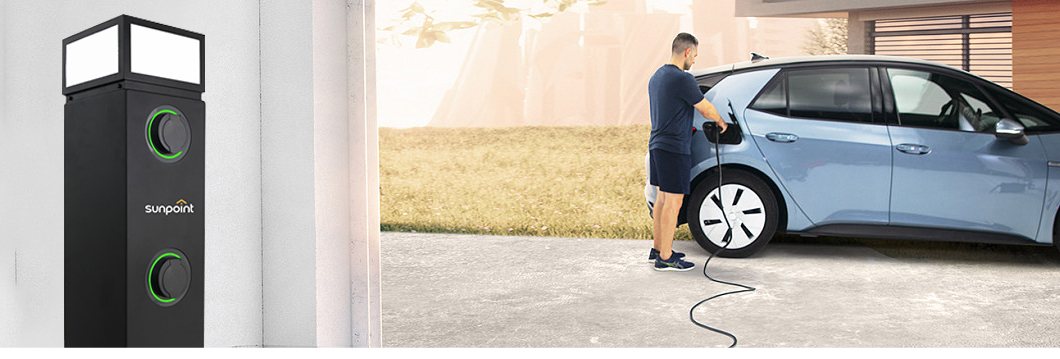

    Home charging station wall box charger

    Functions

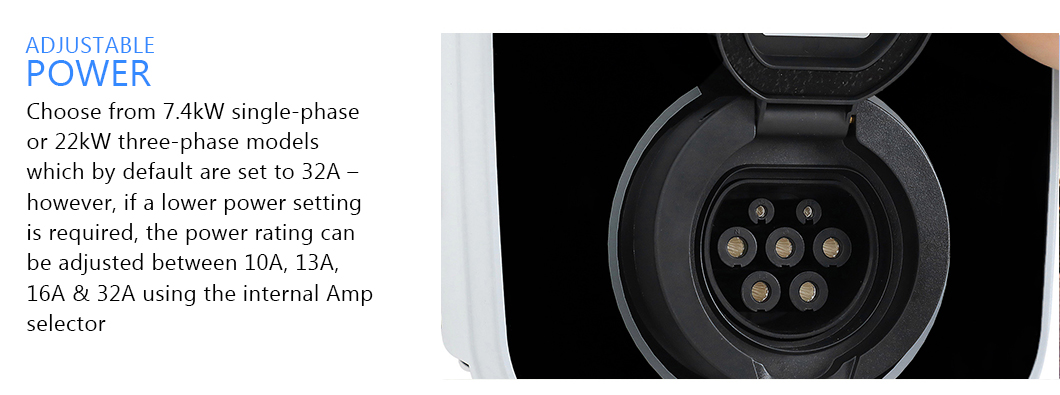

    current-adjustable

    EV Charger current adjustable

    protection-funtion

    Protection functions

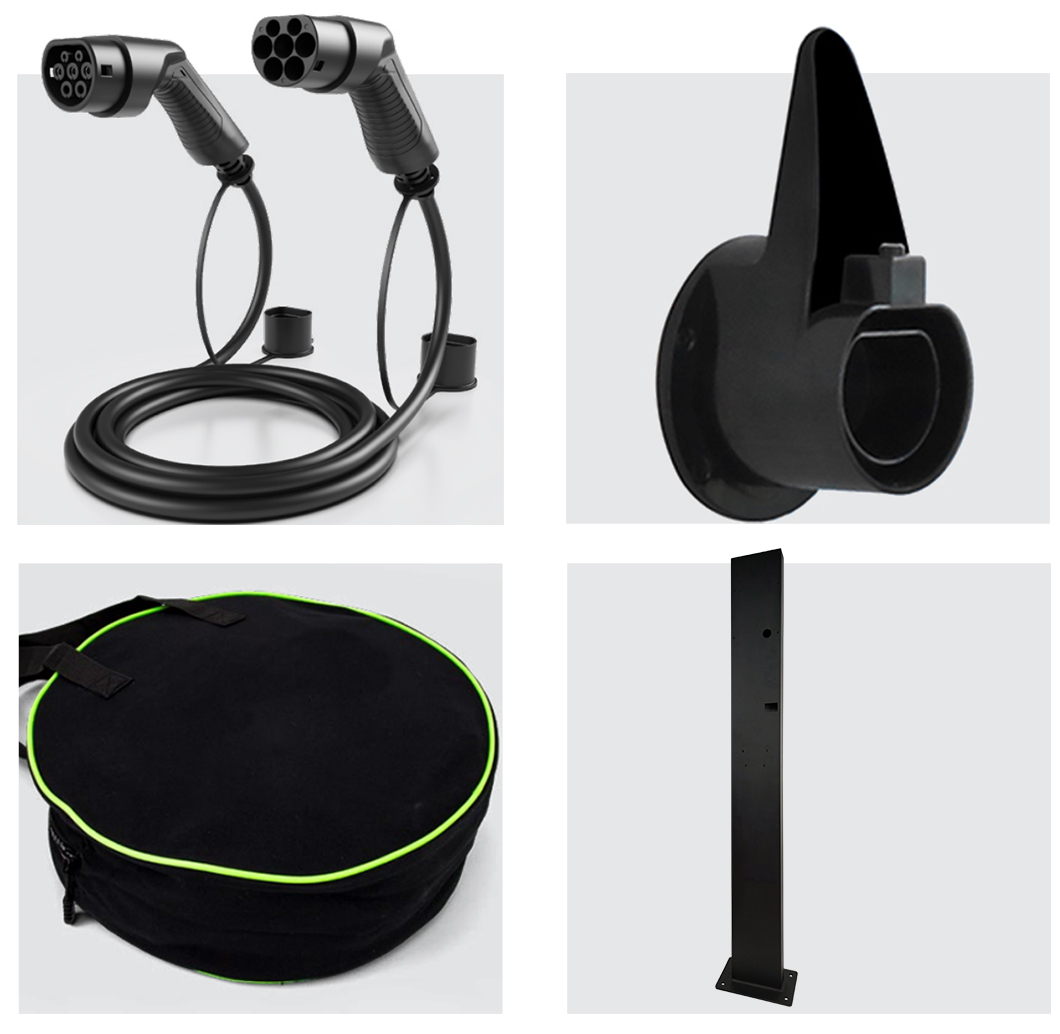

    Accessories

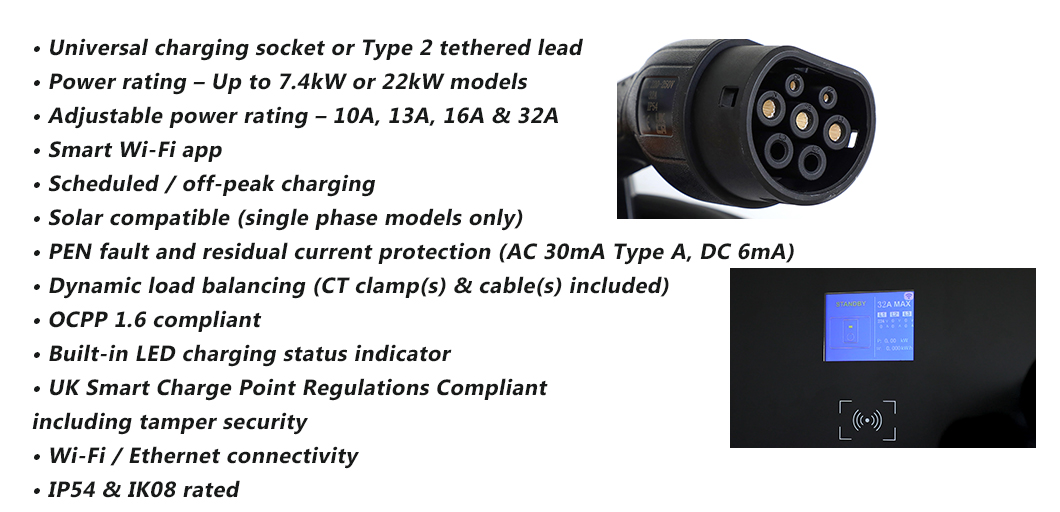

    Type2 Socket/ T2S Socket

    type2-socket
    T2S-socket

    Cable Holder

    holder-plug

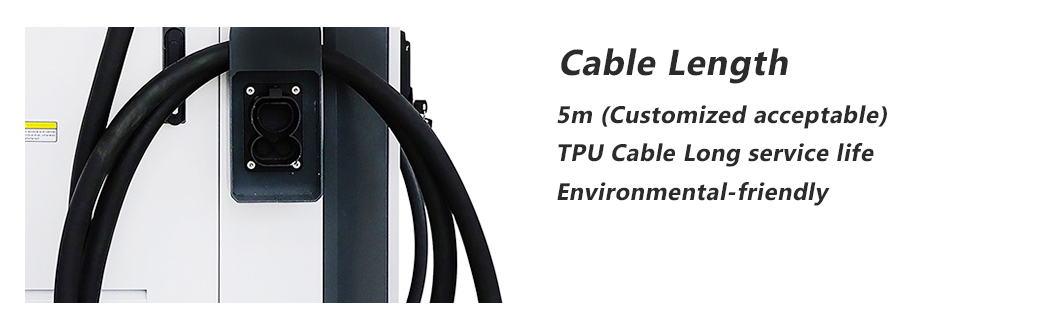

    cable

    Type2-Type2/Type2-Type1 Cable

    carrier case1

    Carrier Case

    Usage scenarios

    RV-scenes-using
    scenes-using-1

    Inspection

    Qaulity-Control
    Qaulity-Control-2
    Qaulity-Control-3

    Installation

    scenes-using-1

    We will provide use manual and our engineer also will guide installation through video

    Customer Feedback

    FAQ:

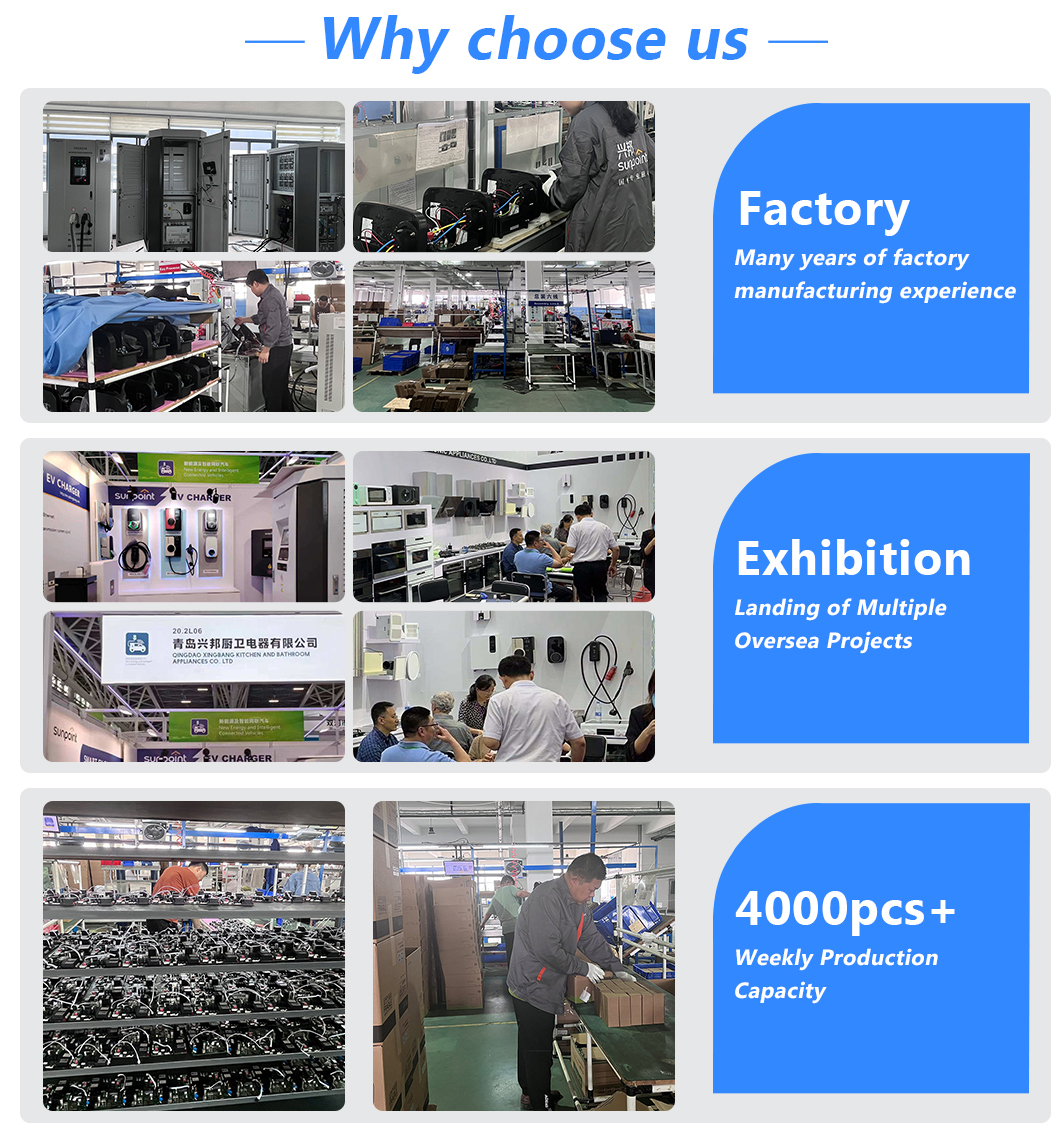

    1.Are you manufacturing factory?---Yes, we’re XingBang Group who have three manufacturing factories and also have relevant factory certificates.

    2.Can I get one sample for testing?---Yes, we can provide sample to you for testing. Sample fee will charge double fee, but the extra cost will return when first bulk order.

    3.Can you print my logo on ev charger?---Yes, we can do oem according to your requirements for bulk order.

    4.Could you give solution for my project?---Yes, we have professional technical team and developping team, we will provide one-way solution to you.

    5.How long delivery time: first order need about 45days after received deposite and next orders will be about 30days.

    6.Does ev charger has O-PEN protection system.---We can add this function if you required.

    7.What’s your MOQ?---100pcs
